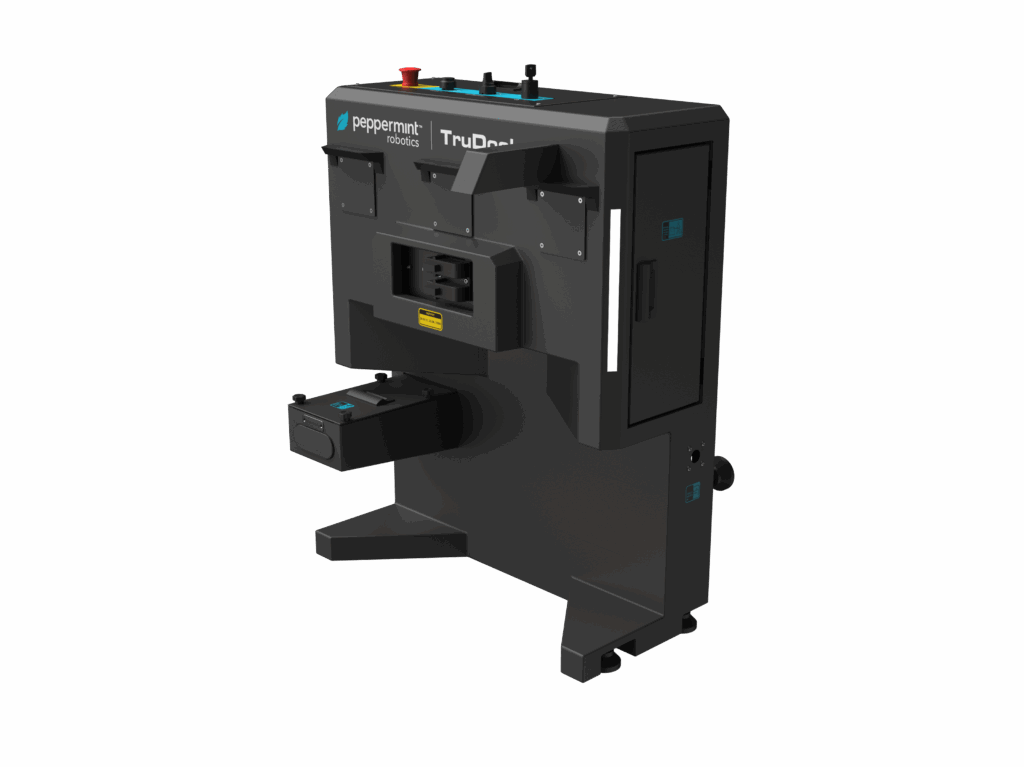

Peppermint Tru-Dock Automated Servicing Station
Unlock true 24/7 autonomous floor care with hands-free charging, automated fluid exchange, and complete fleet integration.
Deploying cutting-edge robotic scrubbers is only half the battle; manual intervention for emptying tanks and recharging batteries can bottleneck your facility’s productivity. The Peppermint Tru-Dock bridges this gap, completely eliminating the need for daily manual machine management. When an active robot’s battery runs low or its water tanks require servicing, it independently routes back to the Tru-Dock to replenish resources and immediately resume its cleaning schedule.
Complete Automation: Hands-Free Fleet Support
Fully compatible with the Peppermint SD20 and SD45 platforms, the Tru-Dock system operates as an intelligent utility node within your facility. Managed seamlessly through the robot’s onboard computer and the cloud-connected Peppermint OS, the entire docking sequence is execution-safe and requires zero supervisor oversight.
Core Automated Functions:
- Automated Battery Charging: Delivers contact-safe, rapid 24VDC charging directly to the robot’s onboard battery cells to minimise idle times between shifts.
- Hygienic Wastewater Extraction: Automatically links with the robot to drain and safely clear away contaminated recovery water collected during cleaning cycles.
- Autonomous Fresh Water Replenishment: Flushes and refills the clean water tank with pristine water combined with exact, pre-set chemical cleaning ratios.
- Seamless OS Integration: Using the Peppermint Ops Toolbox application, your facilities team can easily check docking statuses, track utility consumption, and log service completions remotely.
Industrial Construction: Built for Demanding Sites
The Tru-Dock is engineered with the same rugged philosophy as the mobile scrubbing fleet, ensuring it easily survives the environmental pressures of active industrial landscapes:
- 100% Stainless Steel Body: Built with a corrosion-resistant, robust metallic frame designed for long-term installation on active factory floors and warehouse environments.
- Automotive-Grade Wiring Harness: Heavy-duty internal electrical infrastructure designed to protect against localized moisture, dust ingress, and heavy operational wear.
- Certified Industrial Compliance: Fully accredited for rugged operations in manufacturing zones and complex commercial facilities.
Peppermint Tru-Dock Technical Specifications
With a space-conscious footprint and an IPX3 fluid protection rating, the Tru-Dock can be safely installed in standard service bays or along factory corridors without disrupting active material handling workflows.
| Specification | Technical Data |
|---|---|
| Supported Models | SD45, SD20, SD4X, SD2X |
| Autonomous Docking | Yes (Via Peppermint OS) |
| Manual Override Docking | Yes |
| Battery Voltage output | 24VDC |
| Rated Input Voltage & Frequency | 88-264V~, 47-63Hz |
| Rated Input Current | 10.7A @ 115 VAC / 5.2A @ 230 VAC |
| Rated System Output | 28.8VDC, 22.5A, 756W |
| Battery Charger Power | 24VDC, 756W |
| Physical Dimensions (L x W x H) | 488 mm × 766 mm × 956 mm |
| Net Dry Weight | 58 kg |
| IP Protection Class | IPX3 |
| Electrical Protection Rating | Class I |
Establish True Continuity in Your Facility
Transition your operations to a completely uninterrupted, self-sustaining cleaning model. Handled directly by our engineering deployment facility in Surrey, XO Robotics supplies full infrastructure consultations, safe utility line integration, and responsive parts dispatch. Contact our UK team today to explore adding the Tru-Dock to your automation plan.
